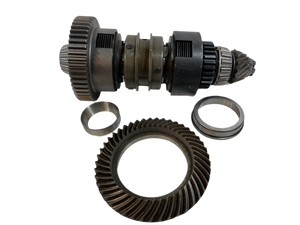

50-13-1Y Complete Clutch

50-13-1Y Complete Clutch

Shipping calculated at checkout.

Complete Clutch for Foster 58-93 and all copies such as Gill 500, TP-82. 93-502-1-100

For repair kit which does not include gears, shaft, and bearings please click here (50-13-1)

Includes:

  • 1 x 819-1 / C504 Anchor pin
  • 4 x 819-5 /  C516 Split Ring
  • 2 x 819-9 /  C508 Pressure Plate
  • 12 x 819-10 / C509 Inner Disc
  • 14 x 819-11 / C510 Outer Disc
  • 2 x 819-12 / C511 Thrust Plate
  • 2 x 819-13 / C507 Adjustment Collar
  • 6 x 819-14 / C513 Spring Pin
  • 6 x 819-16 /  C512 Separating Spring
  • 6 x 819-17 / C514 Dog
  • 6 x 819-18 / C515 Dog Pivot
  • 1 x 819-20 / C505-A Body
  • 1 x 819-21 / C506-A Slipper Sleeve
  • 6 x 11-1186 / C517 #C HyPro Key
  • 1 x 50-20 / G503 Ring Gear and Pinion
  • 1 x 93-32 / B502 Bearing
  • 4 x 58-25 / B504 Bearing
  • 1 x 50-9-1 / G505-A High Clutch Gear
  • 1 x 58-14-2 / C503 Clutch Shaft
  • 1 x 50-12-2 / G506-A Low Clutch Gear
  • 1 x 11-900 / R503-1 Spirolox Ring
  • 2 x 50-45-1 / B512-2 Bearing Spacer
